DIN 6791 Pan Head Semi-Tubular Rivet
din 6791 Pan Head Semi-Tubular Rivet , made of steel , zinc plated, size d10-d300 from professional China Rivets Manufacturer.
DIN 6791 Pan Head Semi-Tubular Rivet
Standard: DIN 6791
Material: Steel
Surface: Zinc Plated
Size: d10-d300
 |
 |

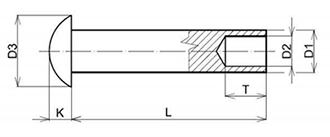

DIN 6791 Pan Head Semi-Tubular Rivet specification:
| Size (d1) |
Head Dia. (d2) |
Shank Dia. (d3) (min) |
d4 | Head Thickness (k) |
e (max) | t |
| 1.6 | 3.2 | 1.52 | 0.9 | 0.7 | 0.8 | 1.5 |
| 2.0 | 4 | 1.87 | 1.2 | 0.9 | 1 | 2.5 |
| 2.5 | 5 | 2.37 | 1.7 | 1.1 | 1.25 | 2.5 |
| 3.0 | 6 | 2.87 | 1.9 | 1.3 | 1.5 | 3 |
| 3.5 | 7 | 3.37 | 2.2 | 1.5 | 1.75 | 4 |
| 4.0 | 8 | 3.87 | 2.7 | 1.8 | 2 | 4 |
| 5.0 | 10 | 4.82 | 3.5 | 2.2 | 2.5 | 5 |
| 6.0 | 12 | 5.82 | 4.2 | 2.6 | 3 | 6.5 |
| 8.0 | 16 | 6.82 | 6 | 3.5 | 4 | 8 |
| 10.0 | 20 | 9.4 | 7.6 | 4.4 | 5 | 10 |
