Self-clinching Nuts
Self-clinching Nuts used for sheet metal by anchoring into the material. We’re re manufacturer of S / CLS / SP series self-clinching nuts in China.
Self-clinching Nuts
Model: S / CLS / SP Series
Material: Steel / Stainless Steel
Size: M2-M10
MOQ: 100Pcs;
 |
 |

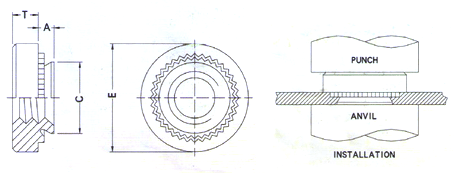

| Size | Model | A max | Sheet metal thickness min | hole size ±0.08 | C Max |
E ±0.25 |
T ±0.25 |
|
| Steel | Stainless steel | |||||||
| M2×0.4 | S-M2-0 | CLS-M2-0 | 0.77 | 0.8-1 | 4.25 | 4.22 | 6.3 | 1.5 |
| S-M2-1 | CLS-M2-1 | 0.97 | 1 | |||||
| S-M2-2 | CLS-M2-2 | 1.38 | 1.4 | |||||
| M2.5×0.45 | S-M2.5-0 | CLS-M2.5-0 | 0.77 | 0.8-1 | 4.25 | 4.22 | 6.3 | 1.5 |
| S-M2.5-1 | CLS-M2.5-1 | 0.97 | 1 | |||||
| S-M2.5-2 | CLS-M2.5-2 | 1.38 | 1.4 | |||||
| M3×0.5 | S-M3-0 | CLS-M3-0 | 0.77 | 0.8-1 | 4.25 | 4.22 | 6.3 | 1.5 |
| S-M3-1 | CLS-M3-1 | 0.97 | 1 | |||||
| S-M3-2 | CLS-M3-2 | 1.38 | 1.4 | |||||
| M3.5×0.6 | S-M3.5-0 | CLS-M3.5-0 | 0.77 | 0.8-1 | 4.75 | 4.73 | 7.1 | 1.5 |
| S-M3.5-1 | CLS-M3.5-1 | 0.97 | 1 | |||||
| S-M3.5-2 | CLS-M3.5-2 | 1.38 | 1.4 | |||||
| M4×0.7 | S-M4-0 | CLS-M4-0 | 0.77 | 0.8-1 | 5.4 | 5.38 | 7.9 | 2 |
| S-M4-1 | CLS-M4-1 | 0.97 | 1 | |||||
| S-M4-2 | CLS-M4-2 | 1.38 | 1.4 | |||||
| M5×0.8 | S-M5-0 | CLS-M5-0 | 0.77 | 0.8-1 | 6.4 | 6.38 | 8.7 | 2 |
| S-M5-1 | CLS-M5-1 | 0.97 | 1 | |||||
| S-M5-2 | CLS-M5-2 | 1.38 | 1.4 | |||||
| M6×1.0 | S-M6-0 | CLS-M6-0 | 1.15 | 1.2 | 8.75 | 8.72 | 11.05 | 4.08 |
| S-M6-1 | CLS-M6-1 | 1.38 | 1.4 | |||||
| S-M6-2 | CLS-M6-2 | 2.21 | 2.3 | |||||
| M8×1.25 | S-M8-1 | CLS-M8-1 | 1.38 | 1.4 | 10.5 | 10.47 | 12.65 | 5.47 |
| S-M8-2 | CLS-M8-2 | 2.21 | 2.3 | |||||
| M10×1.5 | S-M10-1 | CLS-M10-1 | 2.21 | 2.31 | 14 | 13.97 | 17.35 | 7.48 |
| S-M10-2 | CLS-M10-2 | 3.05 | 3.18 | |||||
| M12×1.75 | S-M12-1 | CLS-M12-1 | 2.21 | 2.31 | 16 | 15.97 | 19 | 8.5 |
| S-M12-2 | CLS-M12-2 | 3.05 | 3.18 | |||||
