DIN 7993A RW Snap Rings
DIN 7993A RW Snap Rings, Wire Snap Rings made of made of spring steel 65Mn, black oxide , size M6-M12 from China Snap Rings manufacturer.
DIN 7993A RW Snap Rings
Material: Spring Steel ;
Finish: Black oxide, Zinc plated
Size: M6 – M12
 |
 |

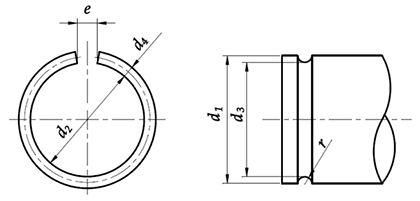

DIN 7993A RW Snap Rings specification:
| Size | d max | d min | d1 | n |
| 4 | 3.1 | 2.9 | 0.8 | 1 |
| 5 | 4.1 | 3.9 | 0.8 | 1 |
| 6 | 5.1 | 4.9 | 0.8 | 1 |
| 7 | 6.1 | 5.8 | 0.8 | 2 |
| 8 | 7.1 | 6.8 | 0.8 | 2 |
| 10 | 9.1 | 8.8 | 0.8 | 2 |
| 12 | 10.8 | 10.4 | 1 | 3 |
| 14 | 12.8 | 12.4 | 1 | 3 |
| 16 | 14.2 | 13.8 | 1.6 | 3 |
| 18 | 16.2 | 15.8 | 1.6 | 3 |
| 20 | 17.7 | 17.2 | 2 | 3 |
| 22 | 19.7 | 19.2 | 2 | 3 |
| 24 | 21.7 | 21.2 | 2 | 3 |
| 25 | 22.7 | 22.2 | 2 | 3 |
| 26 | 23.7 | 23.2 | 2 | 3 |
| 28 | 25.7 | 25.2 | 2 | 3 |
| 30 | 27.7 | 27.2 | 2 | 3 |
| 32 | 29.1 | 28.5 | 2.5 | 4 |
| 35 | 32.1 | 31.5 | 2.5 | 4 |
| 38 | 35.1 | 34.5 | 2.5 | 4 |
| 40 | 37.1 | 36.5 | 2.5 | 4 |
| 42 | 39 | 38.2 | 2.5 | 4 |
| 45 | 42 | 41.2 | 2.5 | 4 |
| 48 | 45 | 44.2 | 2.5 | 4 |
| 50 | 47 | 46.2 | 2.5 | 4 |
| 55 | 51.1 | 50.3 | 3.2 | 4 |
| 60 | 56.1 | 55.3 | 3.2 | 4 |
| 65 | 61.1 | 60.3 | 3.2 | 4 |
| 70 | 66 | 65 | 3.2 | 5 |
| 75 | 71 | 70 | 3.2 | 5 |
| 80 | 76 | 75 | 3.2 | 5 |
| 85 | 81 | 80 | 3.2 | 5 |
| 90 | 86 | 85 | 3.2 | 5 |
| 95 | 91 | 90 | 3.2 | 5 |
| 100 | 95.8 | 94.6 | 3.2 | 5 |
| 105 | 100.8 | 99.6 | 3.2 | 5 |
| 110 | 105.8 | 104.6 | 3.2 | 5 |
| 115 | 110.8 | 109.6 | 3.2 | 5 |
| 120 | 115.8 | 114.6 | 3.2 | 5 |
| 125 | 120.8 | 119.6 | 3.2 | 5 |
