DIN 9927 SW Series Snap Ring for shaft
DIN 9927 SW Series Snap Ring for shaft, Safety rings for shaft, made of spring steel 65 Mn, black oxide, size d4-d200mm from China Snap Rings manufacturer.
DIN 9927 SW Series Snap Ring for shaft , circlips, safety ring for shaft
Standard: DIN 9927
Material: Spring Steel ; Finish: Black oxide
Hardness: HRC41-HRC46
Size: d4 – d200
 |
 |

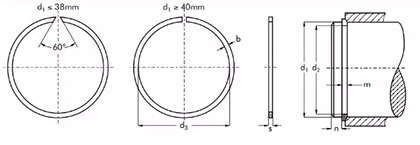

DIN 9927 SW Series Snap Ring for shaft specification:
| Size | d3 max | d3 min | h max | h min | b max | b min | Weight ( Kg/Mpcs) |
| 4 | 3.7 | 3.4 | 0.5 | 0.4 | 0.8 | 0.7 | 0.02 |
| 5 | 4.7 | 4.4 | 0.5 | 0.4 | 1 | 0.9 | 0.05 |
| 6 | 5.6 | 5.3 | 0.7 | 0.6 | 1.1 | 1 | 0.09 |
| 7 | 6.5 | 6.2 | 0.7 | 0.6 | 1.2 | 1.1 | 0.12 |
| 8 | 7.4 | 7.1 | 1 | 0.9 | 1.3 | 1.2 | 0.2 |
| 9 | 8.4 | 8.1 | 1 | 0.9 | 1.3 | 1.2 | 0.24 |
| 10 | 9.4 | 9 | 1 | 0.9 | 1.3 | 1.2 | 0.25 |
| 11 | 10.2 | 9.8 | 1 | 0.9 | 1.3 | 1.2 | 0.29 |
| 12 | 11.2 | 10.8 | 1 | 0.9 | 1.3 | 1.2 | 0.3 |
| 13 | 12.2 | 11.8 | 1 | 0.9 | 1.3 | 1.2 | 0.34 |
| 14 | 13.1 | 12.7 | 1.2 | 1.1 | 1.5 | 1.4 | 0.5 |
| 15 | 14 | 13.6 | 1.2 | 1.1 | 1.75 | 1.65 | 0.66 |
| 16 | 15 | 14.6 | 1.2 | 1.1 | 1.75 | 1.65 | 0.69 |
| 17 | 16 | 15.2 | 1.2 | 1.1 | 1.75 | 1.65 | 0.72 |
| 18 | 17 | 16.2 | 1.2 | 1.1 | 1.75 | 1.65 | 0.75 |
| 19 | 17.9 | 17.1 | 1.2 | 1.1 | 1.75 | 1.65 | 0.8 |
| 20 | 18.7 | 17.9 | 1.2 | 1.1 | 1.75 | 1.65 | 0.84 |
| 21 | 19.7 | 18.9 | 1.2 | 1.1 | 1.75 | 1.65 | 0.87 |
| 22 | 20.7 | 19.9 | 1.2 | 1.1 | 1.75 | 1.65 | 0.91 |
| 24 | 22.5 | 21.5 | 1.2 | 1.1 | 1.75 | 1.65 | 0.99 |
| 25 | 23.5 | 22.5 | 1.2 | 1.1 | 1.75 | 1.65 | 1 |
| 26 | 24.5 | 23.5 | 1.2 | 1.1 | 1.75 | 1.65 | 1.1 |
| 27 | 25.5 | 24.5 | 1.5 | 1.4 | 2.3 | 2.2 | 2 |
| 28 | 26.5 | 25.5 | 1.5 | 1.4 | 2.3 | 2.2 | 2.11 |
| 29 | 27.5 | 26.5 | 1.5 | 1.4 | 2.3 | 2.2 | 2.2 |
| 30 | 28.5 | 27.5 | 1.5 | 1.4 | 2.3 | 2.2 | 2.33 |
| 32 | 30.2 | 29 | 1.5 | 1.4 | 2.3 | 2.2 | 2.41 |
| 35 | 33.2 | 32 | 1.5 | 1.4 | 2.3 | 2.2 | 2.51 |
| 37 | 35.2 | 34 | 1.5 | 1.4 | 2.3 | 2.2 | 2.72 |
| 38 | 36.2 | 35 | 1.5 | 1.4 | 2.3 | 2.2 | 2.83 |
| 40 | 37.8 | 36.6 | 1.5 | 1.4 | 2.3 | 2.2 | 2.91 |
| 42 | 39.8 | 38.6 | 1.5 | 1.4 | 2.3 | 2.2 | 3.1 |
| 43 | 40.8 | 39.6 | 1.5 | 1.4 | 2.3 | 2.2 | 3.25 |
| 44 | 41.8 | 40.6 | 1.5 | 1.4 | 2.3 | 2.2 | 3.3 |
| 45 | 42.8 | 41.6 | 1.5 | 1.4 | 2.3 | 2.2 | 3.39 |
| 47 | 44.8 | 43.6 | 1.5 | 1.4 | 2.3 | 2.2 | 3.48 |
| 48 | 45.8 | 44.6 | 1.5 | 1.4 | 2.3 | 2.2 | 3.6 |
| 50 | 47.8 | 46.6 | 1.5 | 1.4 | 2.3 | 2.2 | 3.73 |
| 52 | 49.8 | 48.3 | 1.5 | 1.4 | 2.3 | 2.2 | 3.92 |
| 55 | 52.6 | 51.1 | 1.5 | 1.4 | 2.3 | 2.2 | 4.11 |
| 58 | 55.6 | 54.1 | 1.5 | 1.4 | 2.3 | 2.2 | 4.4 |
| 60 | 57.6 | 56.1 | 1.5 | 1.4 | 2.3 | 2.2 | 4.55 |
| 62 | 59.6 | 58.1 | 1.5 | 1.4 | 2.3 | 2.2 | 4.56 |
| 63 | 60.6 | 59.1 | 1.5 | 1.4 | 2.3 | 2.2 | 4.58 |
| 65 | 62.6 | 61.1 | 1.5 | 1.4 | 2.3 | 2.2 | 4.64 |
| 68 | 65.4 | 63.9 | 2 | 1.9 | 2.8 | 2.7 | 8.59 |
| 70 | 67.4 | 65.9 | 2 | 1.9 | 2.8 | 2.7 | 8.71 |
| 72 | 69.4 | 67.9 | 2 | 1.9 | 2.8 | 2.7 | 8.8 |
| 73 | 70.4 | 68.9 | 2 | 1.9 | 2.8 | 2.7 | 8.9 |
| 75 | 72.4 | 70.9 | 2 | 1.9 | 2.8 | 2.7 | 9.32 |
| 80 | 77.4 | 75.9 | 2 | 1.9 | 2.8 | 2.7 | 9.67 |
| 85 | 82 | 80.3 | 2.5 | 2.4 | 3.4 | 3.3 | 16 |
| 90 | 87 | 85.3 | 2.5 | 2.4 | 3.4 | 3.3 | 16 |
| 95 | 92 | 90.3 | 2.5 | 2.4 | 3.4 | 3.3 | 18.2 |
| 100 | 97 | 95.3 | 2.5 | 2.4 | 3.4 | 3.3 | 18.9 |
| 105 | 101.7 | 100 | 2.5 | 2.4 | 3.4 | 3.3 | 20.7 |
| 110 | 106.6 | 104.9 | 2.5 | 2.4 | 3.4 | 3.3 | 20.9 |
| 115 | 111.6 | 109.9 | 2.5 | 2.4 | 3.4 | 3.3 | 22.1 |
| 120 | 116.5 | 114.8 | 2.5 | 2.4 | 3.4 | 3.3 | 24.1 |
| 125 | 121.5 | 119.5 | 2.5 | 2.4 | 3.4 | 3.3 | 25.1 |
| 130 | 126.4 | 124.4 | 2.5 | 2.4 | 3.4 | 3.3 | 26.6 |
| 135 | 131.1 | 129.1 | 2.5 | 2.4 | 4 | 3.9 | 30.2 |
| 140 | 136 | 134 | 2.5 | 2.4 | 4 | 3.9 | 31.1 |
| 145 | 141 | 139 | 2.5 | 2.4 | 4 | 3.9 | 32.6 |
| 150 | 145.9 | 143.9 | 2.5 | 2.4 | 4 | 3.9 | 32.8 |
| 155 | 150.9 | 148.9 | 2.5 | 2.4 | 4 | 3.9 | 34.7 |
| 160 | 155.8 | 153.8 | 2.5 | 2.4 | 4 | 3.9 | 36.6 |
| 165 | 160.8 | 158.8 | 2.5 | 2.4 | 4 | 3.9 | 37.4 |
| 170 | 165.7 | 163.7 | 2.5 | 2.4 | 4 | 3.9 | 38.5 |
| 175 | 170.7 | 168.7 | 2.5 | 2.4 | 4 | 3.9 | 39.4 |
| 180 | 175.2 | 173.2 | 3 | 2.9 | 5 | 4.9 | 61.2 |
| 185 | 180.2 | 177.7 | 3 | 2.9 | 5 | 4.9 | 63.9 |
| 190 | 185.1 | 182.6 | 3 | 2.9 | 5 | 4.9 | 65.9 |
| 195 | 190.1 | 187.6 | 3 | 2.9 | 5 | 4.9 | 67.5 |
| 200 | 195 | 192.5 | 3 | 2.9 | 5 | 4.9 | 68.4 |
