M1308 JV/DHI Inverted Lug Internal Circlips
M1308 JV/DHI Inverted Lug Internal Circlips ,Inverted Retaining ring for bore made of Spring steel , black oxide size d10-d100 from professional China Circlips Manufacturer.
M1308 JV/DHI Inverted Lug Internal Circlips
Standard:M1308
Material: Spring Steel 65Mn
Hardness: HRC41-HRC46
Surface: Black oxide
Size: d10-d100
 |
 |

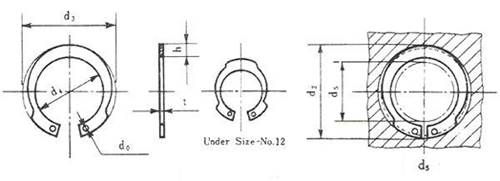

M1308 JV/DHI Inverted Lug Internal Circlips specification:
| Size | s max | s min | d3 min | b max | b min | d0 min | m min |
| 10 | 0.6 | 0.55 | 10.77 | 1.6 | 1.4 | 0.9 | 0.7 |
| 12 | 0.6 | 0.55 | 12.97 | 1.9 | 1.7 | 1.0 | 0.7 |
| 15 | 0.8 | 0.75 | 15.97 | 2.1 | 1.9 | 1.0 | 0.9 |
| 16 | 1.0 | 0.94 | 17.17 | 2.2 | 2.0 | 1.3 | 1.1 |
| 17 | 1.0 | 0.94 | 18.17 | 2.2 | 2.0 | 1.3 | 1.1 |
| 18 | 1.0 | 0.94 | 19.37 | 2.3 | 2.1 | 1.3 | 1.1 |
| 19 | 1.0 | 0.94 | 20.37 | 2.3 | 2.1 | 1.3 | 1.1 |
| 20 | 1.0 | 0.94 | 21.37 | 2.4 | 2.2 | 1.3 | 1.1 |
| 21 | 1.0 | 0.94 | 22.37 | 2.5 | 2.3 | 1.3 | 1.1 |
| 22 | 1.0 | 0.94 | 23.37 | 2.5 | 2.3 | 1.3 | 1.1 |
| 24 | 1.2 | 1.14 | 25.69 | 2.9 | 2.7 | 1.5 | 1.3 |
| 25 | 1.2 | 1.14 | 26.69 | 2.9 | 2.7 | 1.5 | 1.3 |
| 26 | 1.2 | 1.14 | 27.69 | 3.1 | 2.9 | 1.5 | 1.3 |
| 27 | 1.2 | 1.14 | 28.89 | 3.1 | 2.9 | 1.5 | 1.3 |
| 28 | 1.2 | 1.14 | 29.85 | 3.2 | 3 | 1.5 | 1.3 |
| 30 | 1.2 | 1.14 | 31.85 | 3.3 | 3.1 | 1.5 | 1.3 |
| 32 | 1.2 | 1.14 | 34.15 | 3.4 | 3.2 | 1.5 | 1.3 |
| 33 | 1.2 | 1.14 | 35.25 | 3.4 | 3.2 | 1.5 | 1.3 |
| 35 | 1.5 | 1.44 | 37.55 | 3.5 | 3.3 | 1.7 | 1.6 |
| 36 | 1.5 | 1.44 | 38.55 | 3.7 | 3.5 | 1.7 | 1.6 |
| 38 | 1.5 | 1.44 | 40.55 | 3.9 | 3.7 | 1.7 | 1.6 |
| 40 | 1.75 | 1.69 | 43.11 | 4.4 | 4.0 | 2.0 | 1.85 |
| 42 | 1.75 | 1.69 | 45.11 | 4.4 | 4.0 | 2.0 | 1.85 |
| 45 | 1.75 | 1.69 | 48.11 | 4.4 | 4.0 | 2.0 | 1.85 |
| 47 | 1.75 | 1.69 | 50.04 | 4.9 | 4.5 | 2.0 | 1.85 |
| 48 | 1.75 | 1.69 | 51.04 | 4.9 | 4.5 | 2.0 | 1.85 |
| 50 | 2.0 | 1.93 | 53.74 | 5.4 | 5.0 | 2.5 | 2.15 |
| 52 | 2.0 | 1.93 | 55.74 | 5.4 | 5.0 | 2.5 | 2.15 |
| 55 | 2.0 | 1.93 | 58.74 | 5.4 | 5.0 | 2.5 | 2.15 |
| 57 | 2.0 | 1.93 | 60.74 | 5.4 | 5.0 | 2.5 | 2.15 |
| 58 | 2.0 | 1.93 | 61.74 | 5.4 | 5.0 | 2.5 | 2.15 |
| 60 | 2.0 | 1.93 | 63.74 | 5.4 | 5.0 | 2.5 | 2.15 |
| 62 | 2.0 | 1.93 | 65.74 | 5.4 | 5.0 | 2.5 | 2.15 |
| 65 | 2.5 | 2.43 | 68.74 | 5.9 | 5.5 | 2.5 | 2.65 |
| 67 | 2.5 | 2.43 | 71.04 | 6.0 | 5.4 | 2.5 | 2.65 |
| 68 | 2.5 | 2.43 | 72.04 | 6.0 | 5.4 | 2.5 | 2.65 |
| 72 | 2.5 | 2.43 | 76.04 | 6.3 | 5.7 | 2.5 | 2.65 |
| 80 | 2.5 | 2.43 | 84.96 | 6.3 | 5.7 | 2.5 | 2.65 |
| 85 | 3.0 | 2.92 | 89.96 | 6.9 | 6.3 | 3.0 | 3.15 |
| 90 | 3.0 | 2.92 | 94.96 | 6.9 | 6.3 | 3.0 | 3.15 |
| 95 | 3.0 | 2.92 | 99.96 | 7.7 | 7.1 | 3.0 | 3.15 |
| 100 | 3.0 | 2.92 | 104.96 | 7.7 | 7.1 | 3.0 | 3.15 |
