M1408 AV/DSI Inverted Lug External Circlips
M1408 AV/DSI Inverted Lug External Circlips , made of Spring steel , black oxide size d10-d100 from professional China Circlips Manufacturer.
M1408 AV/DSI Inverted Lug External Circlips
Standard:M1408
Material: Spring Steel 65Mn
Hardness: HRC41-HRC46
Surface: Black oxide
Size: d10-d100
 |
 |

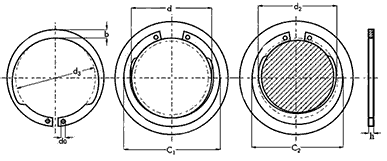

M1408 AV/DSI Inverted Lug External Circlips specification:
| Diameter (d1) |
Unstressed Diameter (d3) |
Thickness (s) |
Beam (b) | Lug Hole (d5) min |
Groove Diameter (d2) |
| 12 | 11 | 1 | 2.1 | 1.3 | 11.5 |
| 13 | 11.9 | 1 | 2.1 | 1.3 | 12.4 |
| 14 | 12.9 | 1 | 2.1 | 1.3 | 13.4 |
| 15 | 13.8 | 1 | 2.2 | 1.3 | 14.3 |
| 16 | 14.7 | 1 | 2.3 | 1.3 | 15.2 |
| 17 | 15.7 | 1 | 2.4 | 1.3 | 16.2 |
| 18 | 16.5 | 1.2 | 2.6 | 1.5 | 17 |
| 20 | 18.5 | 1.2 | 2.8 | 1.5 | 19 |
| 21 | 19.35 | 1.2 | 2.8 | 1.5 | 20 |
| 22 | 20.5 | 1.2 | 3 | 1.5 | 21 |
| 23 | 21.5 | 1.2 | 3.1 | 1.5 | 22 |
| 24 | 22.2 | 1.2 | 3.2 | 1.5 | 22.9 |
| 25 | 23.2 | 1.2 | 3.4 | 1.5 | 23.9 |
| 26 | 24.2 | 1.2 | 3.5 | 1.5 | 24.9 |
| 28 | 25.9 | 1.5 | 3.8 | 2 | 26.6 |
| 30 | 27.9 | 1.5 | 3.9 | 2 | 28.6 |
| 32 | 29.6 | 1.5 | 4 | 2 | 30.3 |
| 34 | 31.5 | 1.5 | 3.5 | 2 | 32.3 |
| 35 | 32.2 | 1.5 | 4.2 | 2 | 33 |
| 38 | 34.5 | 1.75 | 4.5 | 2 | 35.8 |
| 40 | 36.5 | 1.75 | 4.7 | 2 | 37.5 |
| 42 | 38.5 | 1.75 | 4.7 | 2 | 39.5 |
| 45 | 41.5 | 1.75 | 4.7 | 2 | 42.5 |
| 47 | 43.5 | 1.75 | 5 | 2 | 44.5 |
| 48 | 44.5 | 1.75 | 5.2 | 2 | 45.5 |
| 50 | 45.8 | 2 | 5.2 | 2.5 | 47 |
| 55 | 50.8 | 2 | 5.8 | 2.5 | 52 |
| 58 | 53.8 | 2 | 5.8 | 2.5 | 55 |
| 60 | 55.8 | 2 | 5.8 | 2.5 | 57 |
| 65 | 60.8 | 2.5 | 6 | 2.5 | 62 |
| 70 | 65.5 | 2.5 | 6.5 | 2.5 | 67 |
| 72 | 67.5 | 2.5 | 6.5 | 2.5 | 69 |
| 75 | 70.5 | 2.5 | 6.5 | 2.5 | 72 |
| 80 | 74.5 | 2.5 | 7 | 2.5 | 76.5 |
| 82 | 76.5 | 2.5 | 7 | 2.5 | 78.5 |
| 85 | 79.5 | 3 | 7.4 | 3 | 81.5 |
| 87 | 81.5 | 3 | 7.4 | 3 | 83.5 |
| 90 | 84.5 | 3 | 7.4 | 3 | 86.5 |
| 95 | 89.5 | 3 | 8 | 3 | 91.5 |
| 100 | 94.5 | 3 | 8 | 3 | 96.5 |
